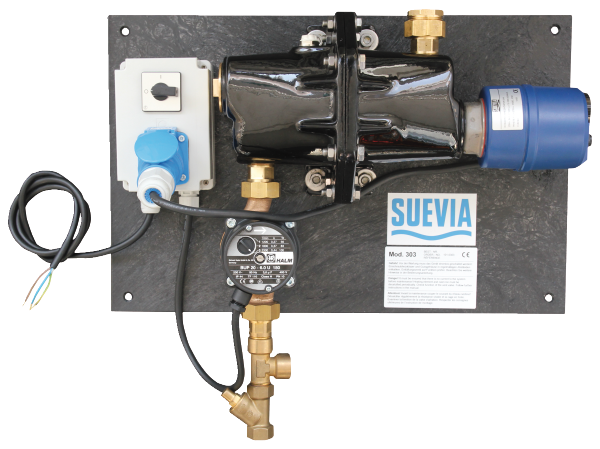

Heating unit Model 303, 3000W, 230V

Category: Heating systems

SKU: 34304

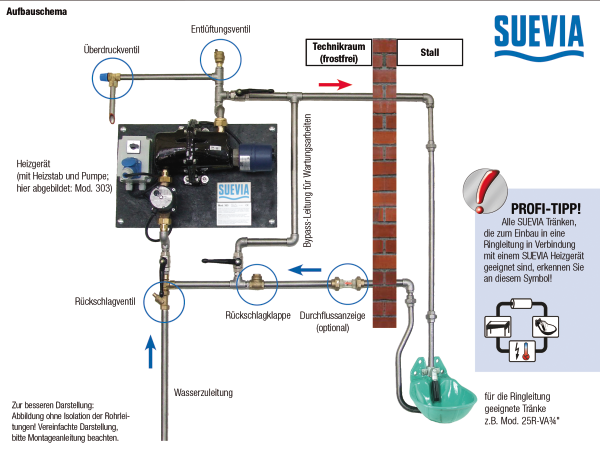

Provides frost-protected water in insulated water circuits (½"or ¾" pipe) for circuit length of max. 200m
Each heating unit model 303 is equipped with a 3000W heating element and is designed for use in exposed locations and free stables and was especially developed for cattles, horses, pigs and sheep
Animals are provided with water in a reliable way, even in very frosty conditions
The heating element is thermostatically controlled and equipped with an overheating protection (STC). Desired flow line water temperature can be adjusted at a regulable switch
The housing is made of high quality cast iron and completely enameled
Model 303 are equipped with a circulation pump (230V, 100W) and is factory-mounted on a plate, ready for immediante installation
Water connections are hold on ¾"

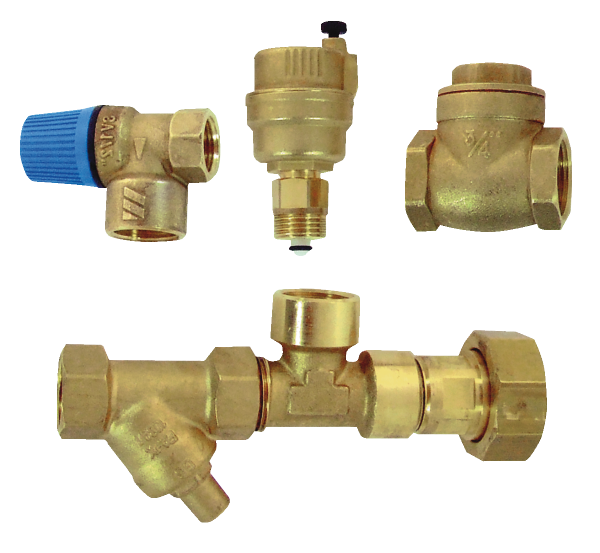

Scope of delivery includes a vent-valve, a pressure relief valve, a non-return valvue, and a non-return flap
A residual-current operated device 30mA has to be provided by the client

Part no.

34304
